Samsung DDR4 memory module, ASUS motherboard; 120GB Kingston solid-state drive (SSD), 4GB RAM

Processor: 9th-Gen Intel Core i3; Customizable

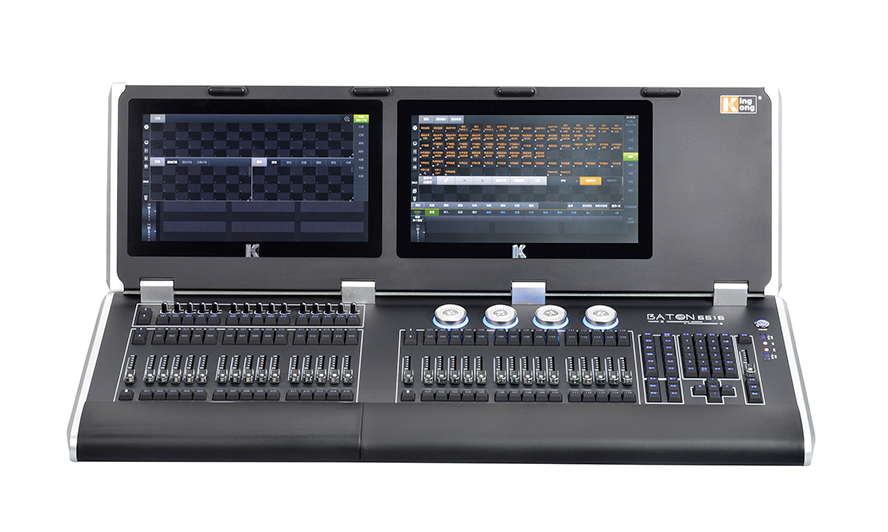

BOE medical-grade touch screens are adopted: 2 units of 15.6-inch capacitive screens with 80% higher sensitivity than traditional resistive screens and zero latency

Custom-developed Linux-based operating system with enhanced transmission real-time performance (seamless switching between Chinese and English)

Equipped with 16 physical 3-pin output ports, delivering 8,192 DMX512 channels. It can be expanded to 64 output ports (32,768 channels) via network

Built-in multilingual support with free switching between Chinese and English

3 USB ports are included (2 front-mounted, 1 rear-mounted) to facilitate simultaneous multi-data input and output

Audio input and output ports are configured both at the front and rear for easier operation

Features 6,000 fixture keys, supporting a maximum of 6,000 patched fixtures

Supports storage of up to 600 fixture groups

Materials are categorized into 9 classes, with 200 materials storable per class, totaling 1,800 storable materials

Pre-programming and on-site time-based materials for efficient programming and live operation

Supports storage of 2,700 scenes, with no limits on the number of steps for multi-step scenes

Allows simultaneous running of 65 scenes: 20 scenes can be operated in the scene window and 45 scenes via faders

Built-in 43 commonly used fixed patterns and 31 curve effects, with parameters adjustable to modify patterns and curves

Pattern grouping for richer programming effects; supports import and export of project files

Enables simultaneous loading of 60 graphic effects for random combination

6 fan modes are available, with fan effect adjustable via the parameter dialog box

Supports storage of 400 programs

Special dialog box allows quick color recall via color palette, color faders or color presets

Vector bitmap function simulates on-site layout, enabling precise and convenient fixture control

All working windows support linear scaling and can be saved as views for easy retrieval

Segment arithmetic function allows flexible segmental operation for attributes, time, patterns, etc.

15 level knobs to limit the execution power of devices

Built-in UPS (Uninterruptible Power Supply) for continuous operation even during sudden power outages

Built-in music player for convenient show programming and rehearsal recording

Fixture groups, materials, scenes, etc. support custom naming or tagging for easy searching and retrieval

XML-format fixture library is adopted. The user-friendly fixture library editor supports on-console editing or offline editing on PC followed by console import

Fixture library supports adding segment sets for quick selection of attribute features

Supports wired Art-Net function (lighting simulator) for practice and simulated programming

Supports wireless Art-Net function with intelligent AI-enabled control, allowing remote operation via mobile phones or iPads

Enables dual-console online control and real-time backup

The console’s virtual numeric keypad supports multilingual switching

Address codes, circuit routes and fixture key positions can be directly modified after fixture patching

All show files of the console can be backed up to external drives. To prevent file loss, server settings can be adjusted for automatic timed saving

Console password can be set to protect console data

Customizable console usage time limit

All hardware components are brand-new and original, eliminating the widespread problem of refurbished products in the market

All faders of the console are made of imported materials, featuring smooth and stable tracks, excellent hand feel, accurate data transmission, zero latency and no jitter

Faders support custom color settings to improve the identifiability of show pages

Rotary encoders are made of imported Japanese materials, ensuring precise data, delicate hand feel and flexible adjustment of rotation speed

All keys of the console are made of imported German materials, delivering strong and responsive hand feel
