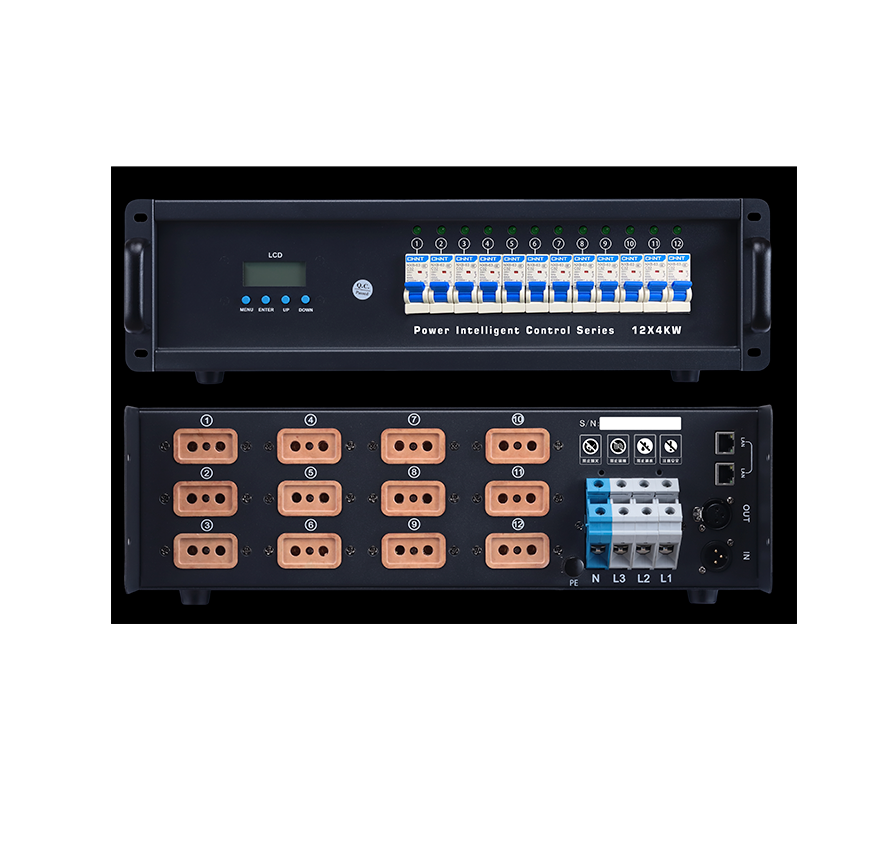

Power Supply: Three-phase AC 380V±10%, Frequency 50Hz±5%

Rated Power: 12 channels × 4KW; Suitable for all types of loads

High-breaking-capacity air switch with dual protection against overload and short circuit

12-channel 40A bakelite plug output

Built-in 12 relays with remote control function; the relays are made of high-quality nickel-plated copper for instant triggering

Equipped with three control modes: international DMX512 signal protocol, Art-net lighting network protocol and custom intelligent control protocol

Real-time control can be achieved separately on the electronic control interface via the matching intelligent control system; the host can also manually turn on/off each channel through the physical buttons on the electrical cabinet host or execute real-time operation commands via the lighting console

The initial on/off state mode of each channel during power-on can be set independentlyMode Selection: Three modes are available — A. Power-on Execution, B. Delayed Execution, C. Instant ExecutionNote: In Power-on Execution Mode: After the electrical cabinet is powered on, each power channel will supply power to the equipment at 0.6-second intervals. The current will have a buffer after power-on, which better protects the equipment. This mode can replace the function of a time driver

Power on/off can be directly controlled via a tablet or wall panel without the need for an intelligent control host

The main unit is equipped with a liquid crystal display (LCD) for operating the host interface

Main Configurations: Circuit breaker (Chint brand); Cables (Zhujiang Cable brand)
