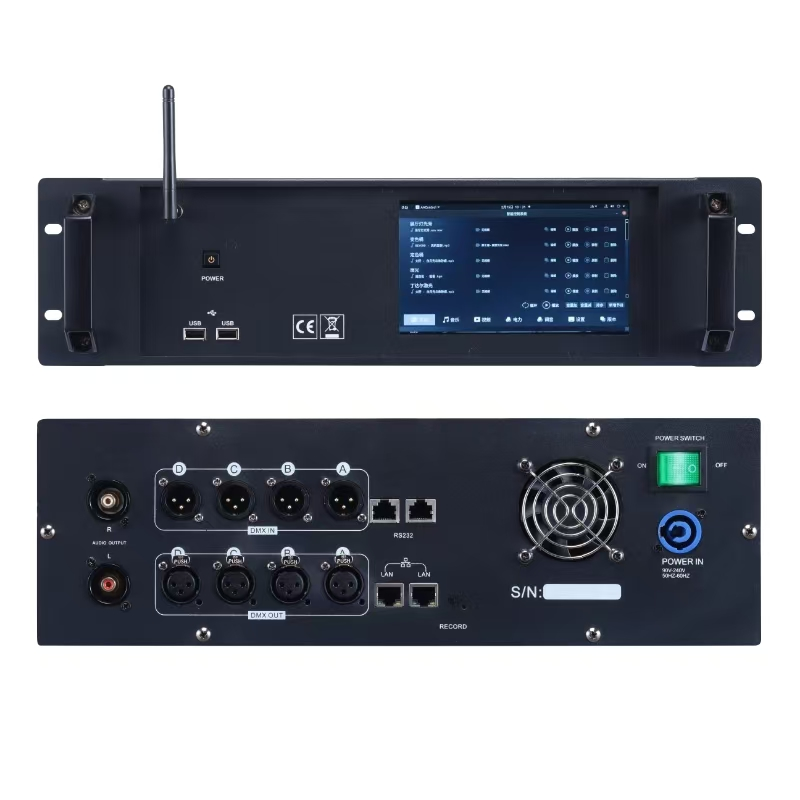

Open programming console with switchable Chinese-English operation interface and interactive control architecture.

7-inch capacitive touch screen, Intel i5 CPU, 4GB RAM, 120GB solid-state drive (SSD).

The host is equipped with Linux operating system for enhanced security.

Built-in single-channel relay module, supporting remote power on/off via tablet.

Supports program classification for scenarios such as wedding banquets, birthday parties, graduation dinners, etc.

Supports USB to audio output.

Supports program search and page turning on tablet mobile terminals.

Digital display for volume adjustment, with volume fade-in and fade-out functions.

Built-in 2 USB 2.0 ports for connecting mouse, keyboard, USB flash drive, etc., to facilitate operation.

Built-in 2 Gigabit Ethernet ports for network connection, enabling wired or wireless connection of third-party tools.

Built-in 2 RS232 protocol ports for connecting mixers, wall panels and other central control devices to trigger the host or retrieve data from it.

ART-NET signal can be converted to DMX512 for input and output.

Built-in 4 DMX512 ports with a total of 2048 channels; network expansion is available to extend to 16 DMX512 ports.

Supports connection with other central control devices for control and data retrieval. The host is equipped with international DMX512 signal protocol, TCP/UDP network protocol, RS232 protocol and custom intelligent control protocol to achieve integrated control.

The host has a power control mode. DMX512 signal connection or Art-net network cable direct connection can realize zoned power control of devices via intelligent electrical cabinets.

Connection with designated mixers enables mobile tablet control of microphone volume and retrieval of fixed mixer effects.

Supports multiple third-party control methods such as wall control panels, mobile phones and iPads.

Programs and control effects can be directly recorded on the host panel.

Supports free switching between host mode and console mode.

Unlimited number of new programs and unlimited program recording duration.

Built-in program list supporting custom naming and free sorting.

Supports synchronized playback of lighting and music.

One-click SHOW playback with ultra-simple design; perfect scene overlay and transition.

Supports MP3 upload, data loading and backup.

AC~110-240V wide voltage input.
