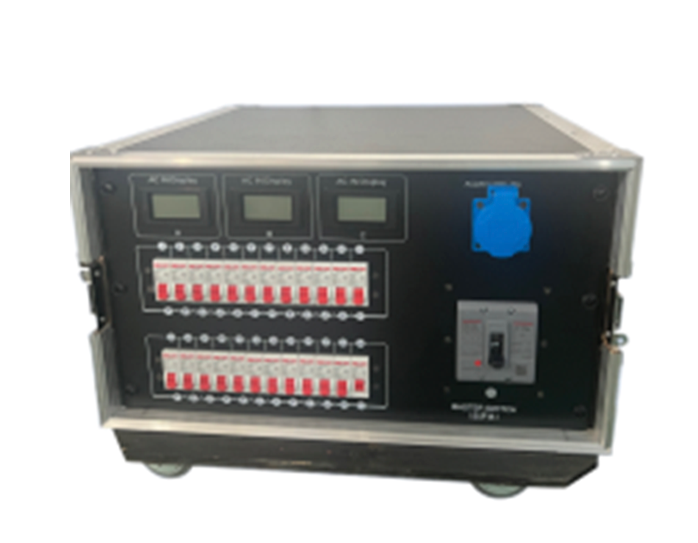

ZO-ZT24


  1. Power Supply: Three-phase five-wire system, AC 380V±10%, Frequency 50Hz±5%

  2. Rated Input Current: 200A; Maximum Load Capacity: 24 channels × 4KW, Suitable for all types of loads

  3. Equipped with a main switch and high-breaking capacity air switch with dual protection against overload and short circuit

  4. Three-phase independent voltage monitoring; Phase A, B, C indicator lights for status display

  5. Output: 24 channels × 4KW

  6. Overall Dimension: International Standard 7U

  7. Input Mode: 40A Two-core Bakelite Plug
