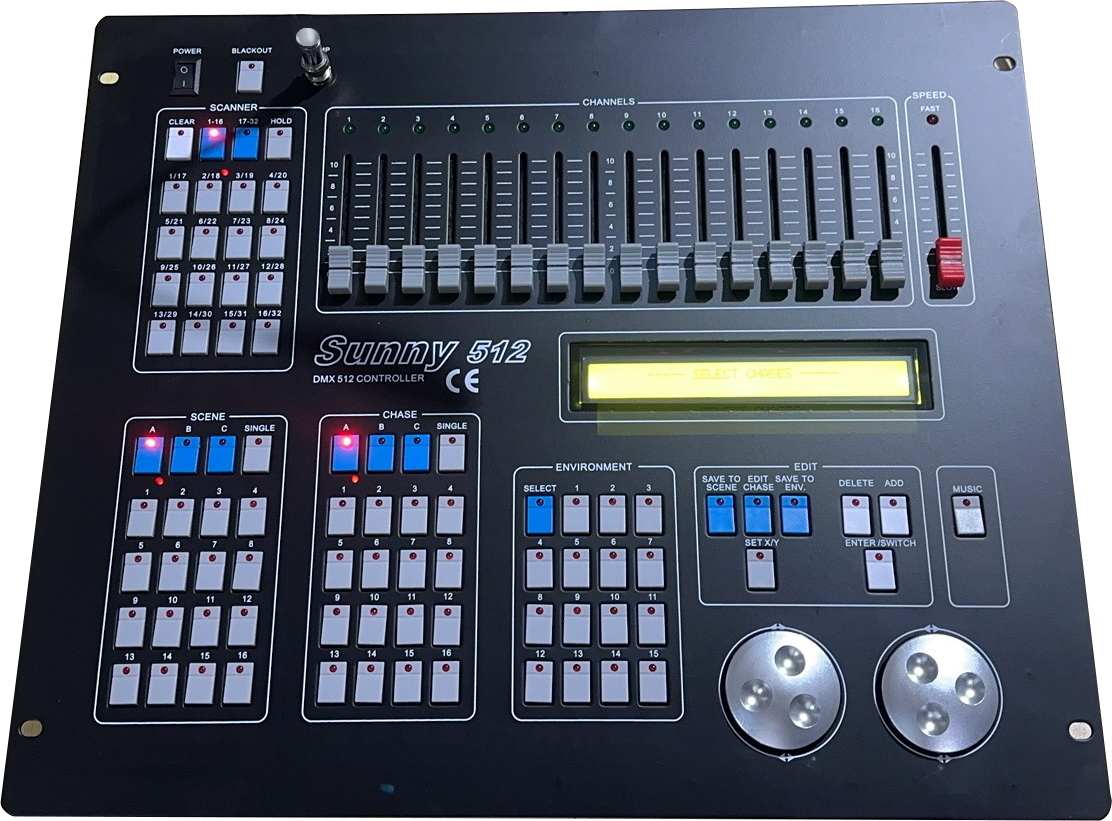

DMX512 digital output, 512 DMX control channels, 2 optically isolated and independently driven signal output ports. It can control 32 units of 16-channel moving head lights, with a storage capacity of 1,600 chase program steps. 48 chase programs are available, with a maximum of 100 steps per program. The speed and fade parameters of each step can be set independently.

Music synchronization or manual speed control is optional. It can run 4 chase programs and 48 scenes simultaneously, and perform blackout operations on 32 moving head lights at the same time. Data is retained after shutdown.

DMX signal output connectors: XLR-3F×212V gooseneck work light is available as an optionPower supply: AC 100-240V 50-60HzDimensions: 483×400×105mm
