• 1. Solve the problem that the traditional conference room speakers are too large in size and not aesthetically pleasing when mounted on the wall.

• Through the constant beam technology in the line array column speakers, solve the difficult problem of projection and interference of traditional conference room speakers.

• In terms of sound performance, it is excellent for language amplification of human voices.

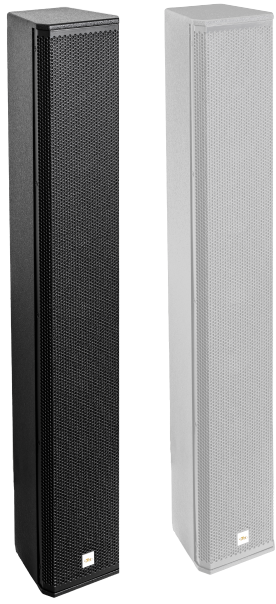

• The array column speakers adopt a streamlined design, which is beautiful and practical in appearance, suitable for sound reinforcement in various architectural spaces, and the sound quality is beautiful and pleasant.

• The circular waveguide holes in the front and the damping openings at the rear of the cabinet form a unique low-frequency heart-shaped diffusion. The treble is crisp and pleasant, the timbre is natural and thick, and the bass is full.

• It has a built-in frequency divider and protective device.

• The sound pressure level is evenly distributed, and it is not harsh when listening in the near field; it is clear when listening in the far field.

• It has the characteristics of a full-plane wave and low feedback whistling.

• The non-compressed horn will not cause microphone feedback whistling.

Unit: 6*4.5-inch woofer, 1*1.5-inch tweeter

Frequency response (Hz): 100Hz-20kHz

Sensitivity (@1W/1m): 99dB

Power/W (rated/long-term/peak): 240W/480W/960W

Maximum sound pressure level: 123dB

Peak sound pressure level: 129dB

Impedance: 6Ω

Coverage angle (horizontal*vertical): 110°*130°

Interface: 2*NL4Speakon (1+/1-)

Cabinet material: Birch plywood

Appearance process: Spraying process

Dimensions (height*width*depth): 858*146*150mm

Net weight (KG): 7.9Kg

Hoisting accessories: SAP-L45HZ/SAP-L45HZ-W wall-mounted bracket
